Twisted Tuning N54/N55 Direct Port Meth Injection Plate

Twisted Tuning N54/N55 Direct Port Meth Injection Plate

Regular price $315.00 Sale

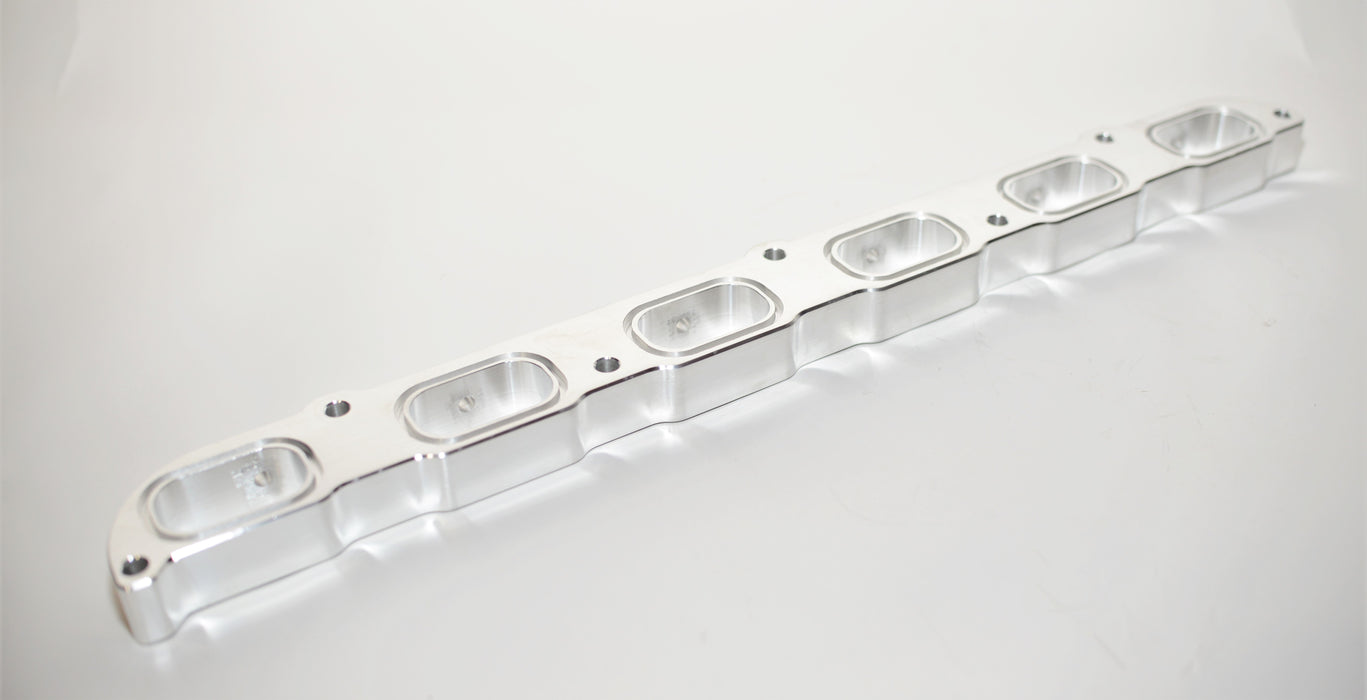

Twisted Tuning's N54/N55 Direct port Meth Plate Kit is an affordable and most durable option on the market for your N54/N55 for those enthusiasts that already have a meth injection system (whether in the chargepipe or Throttle body) and want to convert their system over to the PROVEN best method of secondary fluid injection.
Made from CNC 6061 T6 Aluminum stock machined to spec with tight tolerances.

Kit Includes:
-Direct Port Plate
-Lengthened mounting Studs/Bolts and associated hardware
-Gaskets
-Tapped for 1/8th NPT Meth nozzles (see notes below for other tapping needs)

Optional Add-ons:

-Phenolic Spacer, Ultra Copper Gasket (needed for sealing engine side of Phenolic spacer)

Direct Port injection is the best way for secondary injection of any fuel.  Whether you are using the injection for cooling or for supplemental fueling to the Factory DI system.  Direct port injection alleviates the worry for fluid distribution issues well known to the N54.

**Nozzle mounting is located on the bottom side of the plate when mounted**
**Plate is 25mm in thickness with thick runner bridges which prevents any warping from heat cycling and to promote a constant sealing surface to reduce chances of leaks**

***For other than 1/8th NPT port tapping please inquire ahead of time by emailing us at: twistedtuned@gmail.com so that we can discuss and try to accommodate your needs***
